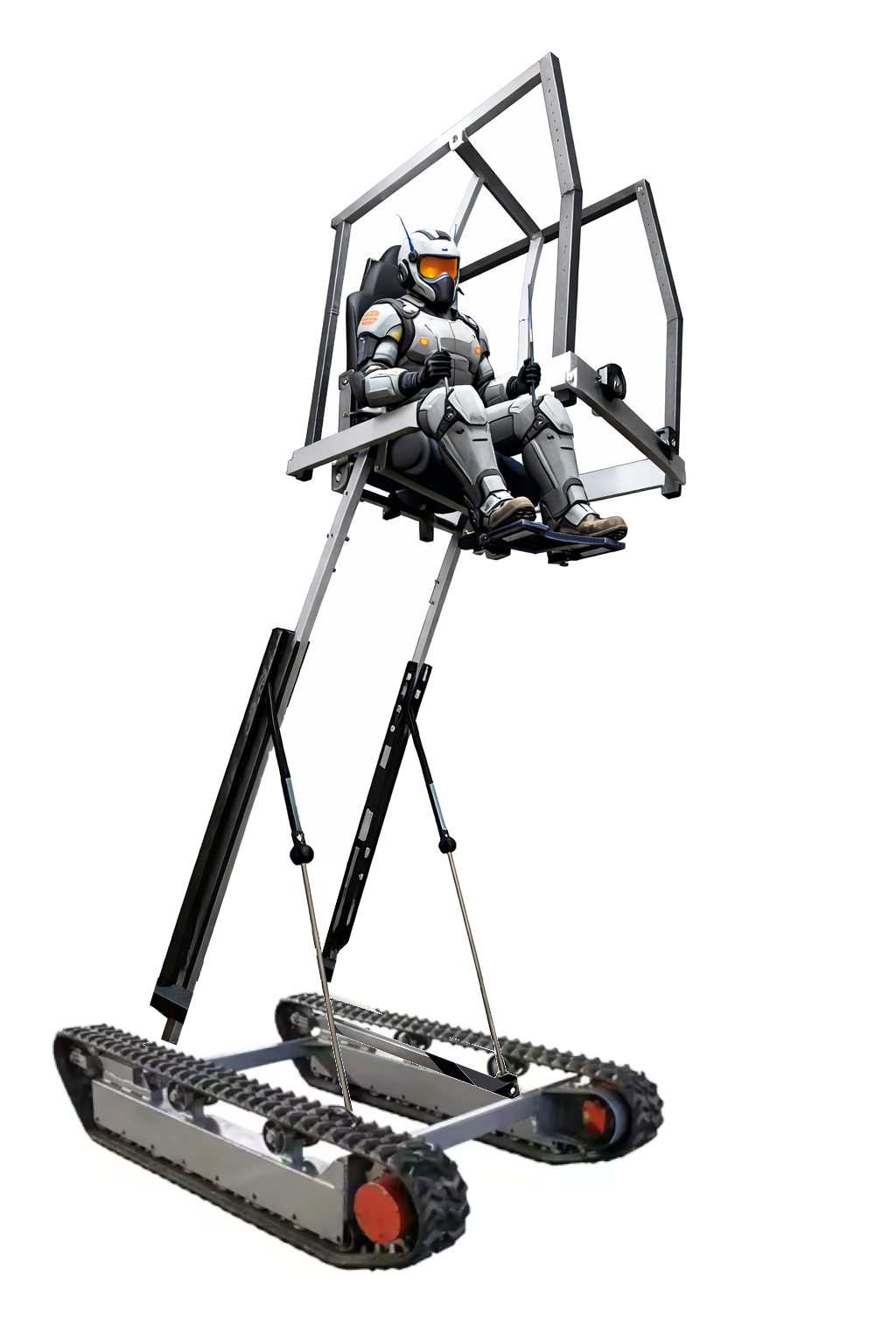

Mecha Pilot Operator Cockpit Interface System Unit (OCU)
Tubular Frame Assembly

The Mecha Pilot Operator Cockpit Interface System Unit (OCU) is the structural operator cockpit framework that forms the core control station of the Mecha PELV™ platform.
Built from reinforced tubular steel construction, the OCU provides the pilot with a secure seated command position inside the mecha frame, enabling full control of mobility systems, arm movements, lighting systems, and mounted equipment.
The tubular cockpit architecture is engineered to provide strength, visibility, operator safety, and modular component integration while maintaining a relatively lightweight structural profile suitable for the Mecha PELV™ platform.

Structural Design

The cockpit frame forms the central pilot compartment within the mecha torso. The structure supports the operator while distributing mechanical loads through the main mecha frame.

Key structural features include:

• Reinforced tubular steel cockpit frame
• Seated operator control position
• Multi-point mounting interface for control systems
• Integrated structural attachment points for armor panels
• Harness mounting locations for operator safety restraints
• Mounting interfaces for lighting, electronics, and accessories

The tubular design allows the cockpit to maintain high structural rigidity while minimizing weight, which is critical for maintaining overall mecha balance and mobility.

Operator Command Position

The cockpit frame is configured for a seated pilot position, providing improved stability during operation of mobility platforms and external equipment.
This seated configuration provides:

• stable center-of-gravity positioning
• improved operator endurance during long sessions
• easier integration with control consoles and joysticks
• enhanced visibility from within the mecha torso

The cockpit is designed to allow the pilot to operate the Mecha PELV™ safely while maintaining a commanding field of view.

Modular Integration

The OCU frame includes standardized mounting points that allow integration of:

• operator control consoles
• joystick control systems
• electronic display panels
• lighting control systems
• communications equipment
• safety harness systems

These mounting points support the modular architecture of the Mecha PELV™ system, allowing the cockpit to be configured for recreation, gaming, events, or experimental mobility platforms.

Compatible Platform Systems

The OCU cockpit frame is designed to integrate with other Mecha PELV™ subsystems including:

• Mecha torso frame assemblies
• arm articulation systems
• ankle unit joint assemblies
• interchangeable mobility platforms
• lighting and sound modules


This integration allows the pilot cockpit to serve as the central command interface of the full mecha platform.

Applications

The Mecha Pilot Operator Cockpit Interface System Unit is suitable for

• Mecha PELV recreational platforms
• gaming and competitive arena environments
• film and entertainment productions
• event attractions and exhibitions
• experimental robotics mobility systems

The OCU cockpit frame serves as the command center of the Mecha PELV™, providing the pilot with a secure, stable, and highly adaptable operator environment for controlling the mecha platform across multiple terrains and mobility configurations.

Included Components

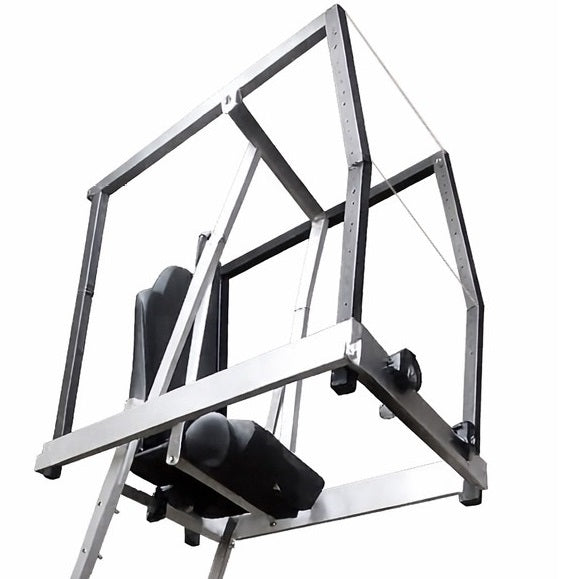

OCU-210 — Seated Tubular Mecha Cockpit Frame

• Reinforced tubular steel cockpit structure
• Seated pilot interface position
• Integrated mounting points for controls and accessories
• Structural interface points for main mecha frame attachment
