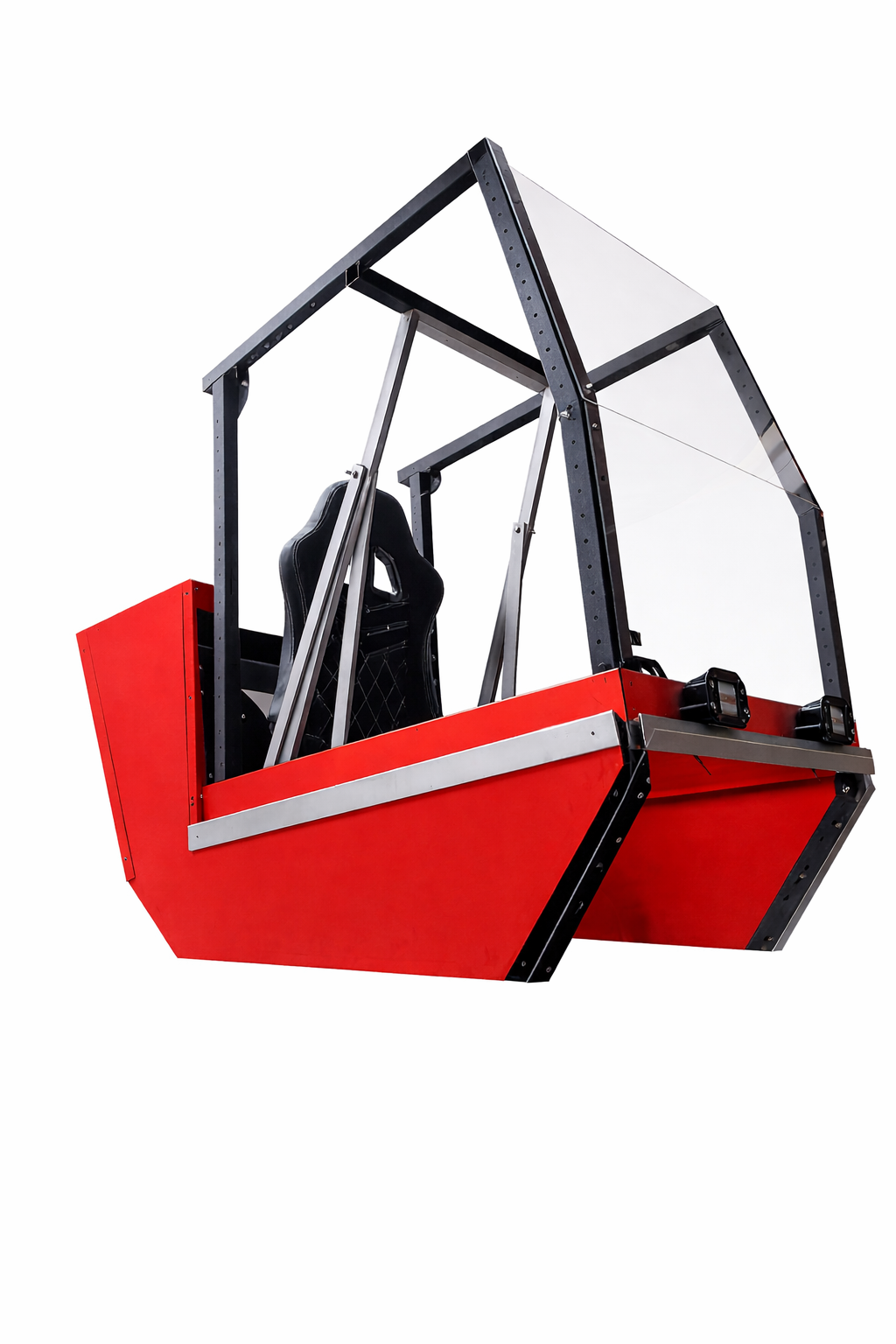

Mecha Pilot Operator Cockpit Interface System Unit (OCU)
Aluminum Body Shell Assembly

The Mecha Pilot Operator Cockpit Interface System Unit (OCU) Body Shell forms the protective outer enclosure of the Mecha PELV™ pilot cockpit. Constructed from lightweight aluminum panels, the body shell surrounds the cockpit frame and provides structural coverage, operator shielding, and the distinctive armored appearance of the mecha platform.

Designed to integrate directly with the OCU tubular cockpit frame, the aluminum shell creates a defined pilot compartment while supporting the installation of lighting systems, armor panels, and exterior equipment.

Structural Design

The cockpit body shell is fabricated from precision-cut aluminum panels mounted to the cockpit frame structure. This design provides an optimal balance between durability, weight management, and modular customization.
Key structural characteristics include:

• Lightweight aluminum panel construction
• Structural mounting points for cockpit frame integration
• Reinforced panel edges for improved rigidity
• Multi-point fastener interface for secure installation
• Exterior mounting surfaces for accessories and armor panels

The aluminum design allows the cockpit to maintain structural durability while minimizing additional weight, supporting the overall mobility and balance of the Mecha PELV™ platform.

Pilot Compartment Enclosure

When installed on the cockpit frame, the body shell forms the outer enclosure of the pilot command station.

The shell provides:

• protective coverage around the pilot seating area
• mounting points for cockpit access panels
• attachment surfaces for external armor elements
• structural support for lighting and visual systems

The enclosure also contributes to the visual scale and mechanical styling of the mecha platform, giving the cockpit its recognizable industrial-mecha appearance.

Modular Integration

The body shell is designed to support the modular architecture of the Mecha PELV™ system.

Compatible integrations may include:

• LED lighting systems
• audio and sound modules
• armor plate attachments
• display panels
• event and production accessories
• communications equipment

This modular capability allows the cockpit shell to be configured for gaming arenas, entertainment productions, exhibitions, or experimental mobility platforms.

Compatible System Integration

The OCU Body Shell integrates with several Mecha PELV™ subsystems including:O

• CU tubular cockpit frame assemblies
• mecha torso frame structures
• arm articulation modules
• operator control systems
• lighting and visual systems

Together with the cockpit frame, the body shell forms the complete pilot command enclosure of the Mecha PELV™ platform.

Applications

The OCU Body Shell is designed for use in:

• Mecha PELV recreational platforms
• gaming and competitive arena environments
• film and television productions
• event attractions and exhibitions
• robotics and mobility experimentation platforms

The Mecha Pilot Operator Cockpit Interface System Unit Body Shell provides the protective and structural enclosure that transforms the cockpit frame into a complete pilot command compartment, forming the central control environment of the Mecha PELV™ system.

Included Components

OCU-220 — Seated Aluminum Mecha Cockpit Body Shell
Includes:

• Aluminum cockpit enclosure panels
• Frame mounting hardware interfaces
• Structural reinforcement edges
• Access panel mounting locations
