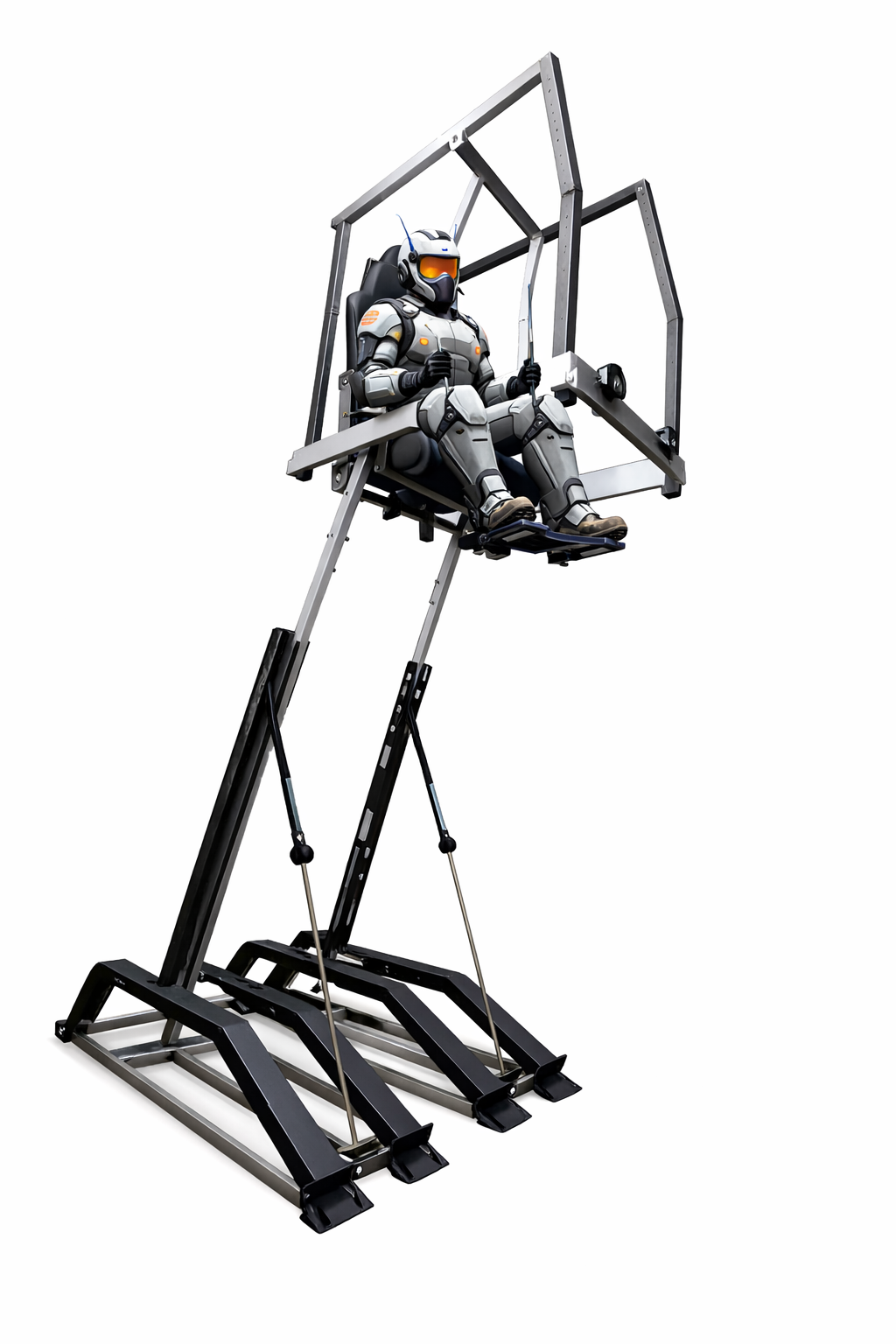

Heavy Industrial 10-Foot-Tall Mecha Command Frame with Seated Cockpit Pilot Operator Interface System

The Heavy Industrial Mecha Command Frame is a modular, operator-piloted robotic platform designed for industrial operations, hazardous-environment work, and advanced experimental mobility systems.

Built on the Mecha Modular Unit Architecture, the 10-foot-tall command frame integrates structural robotics, operator safety systems, and a seated pilot cockpit to provide a stable human-machine interface for controlling heavy mecha platforms.

The system combines a reinforced command frame, seated cockpit interface, and industrial standing leg mobility system, allowing a pilot operator to safely command the mecha platform while maintaining high situational awareness and ergonomic comfort.

Engineered for modular expansion, the frame supports additional Mecha Modular Units including industrial tools, sensor systems, and alternate mobility platforms.

Included Mecha Modular Units

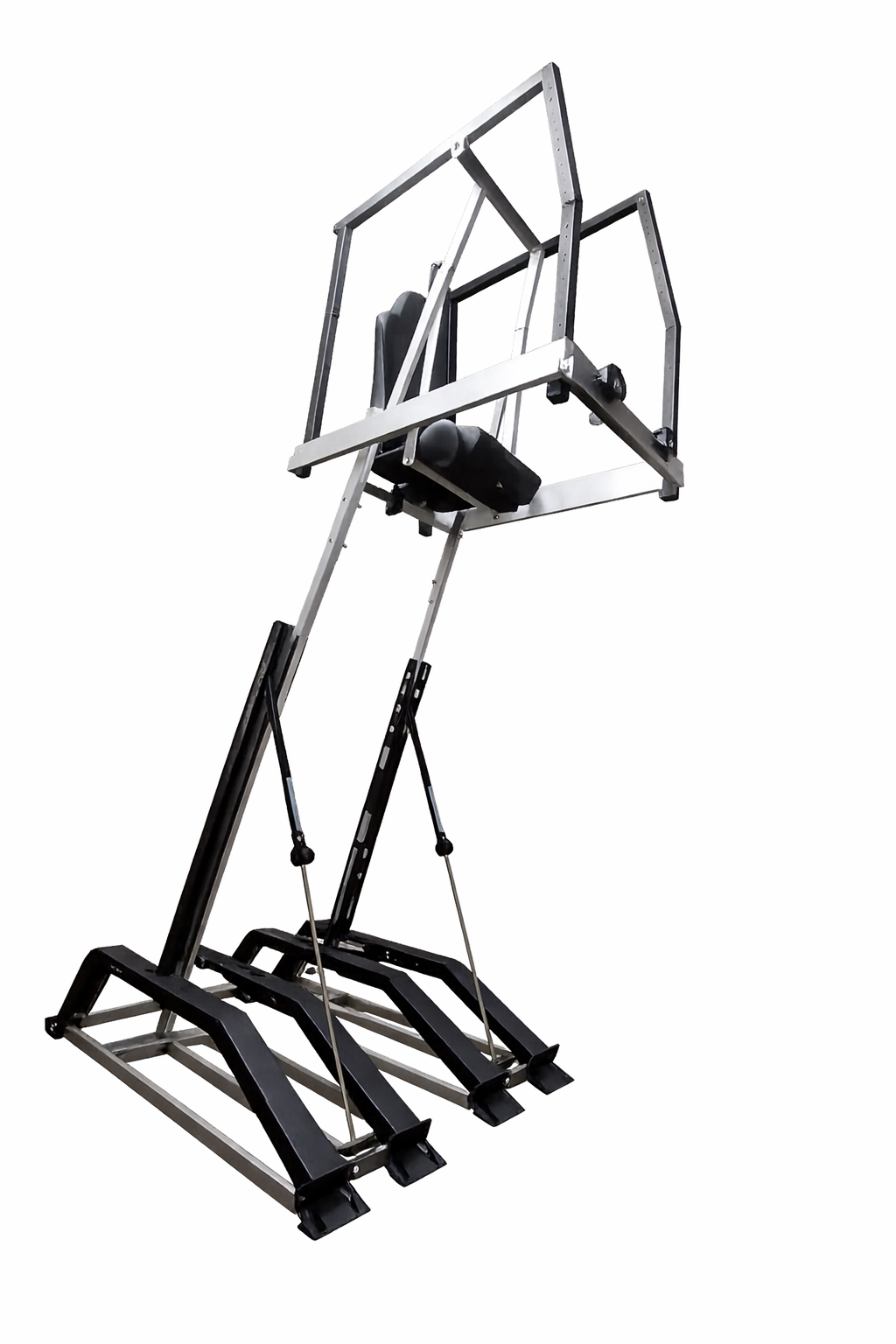

CF-110 Heavy Industrial Mecha Command Frame
(Mecha Platform Core System Unit)

The CF-110 serves as the primary structural chassis of the mecha platform, integrating load-bearing structural supports, mounting points for mobility units, and the cockpit interface mounting system.

Key functions include:

• Structural support for all mecha modular units
• Central load-distribution frame
• Cockpit mounting and pilot protection structure
• Attachment interfaces for mobility, power, and industrial tool modules

Constructed for heavy industrial duty, the command frame provides the foundation for safe pilot-operated mecha systems.

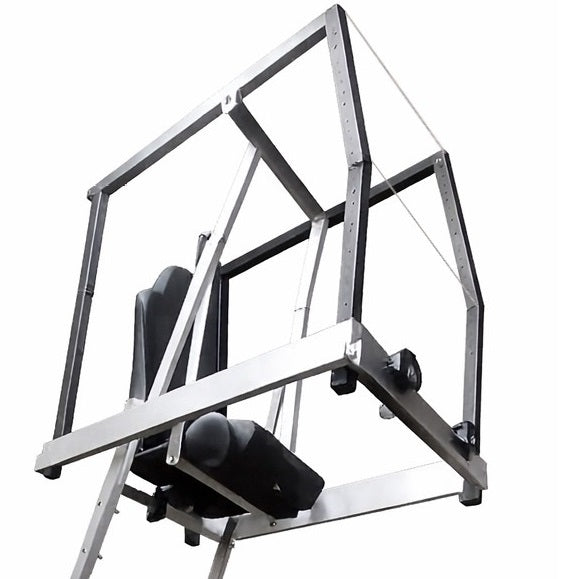

OC-210 Seated Mecha Cockpit
(Mecha Pilot Operator Cockpit Interface Unit)

The OC-210 cockpit unit provides the pilot control environment for operating the mecha command frame.

Features include:

• Seated operator control station
• Mounting interface for pilot controls and instrumentation
• Structural integration with the command frame
• Visibility and ergonomic positioning for extended operations

The cockpit system enables a human pilot to interface with the mecha platform through control hardware, displays, and safety systems.

CIU-300 Universal Structural Connector
(Mecha Proprietary Interface System Unit)

The CIU-300 is the proprietary modular connection interface used across Mecha Robotics systems.

Functions include:

• Secure mechanical connection between modules
• Rapid installation and removal of mecha components
• Structural load transfer between systems
• Compatibility with the Mecha Modular Unit ecosystem

The CIU-300 allows operators and integrators to reconfigure the mecha platform quickly for different missions or industrial roles.

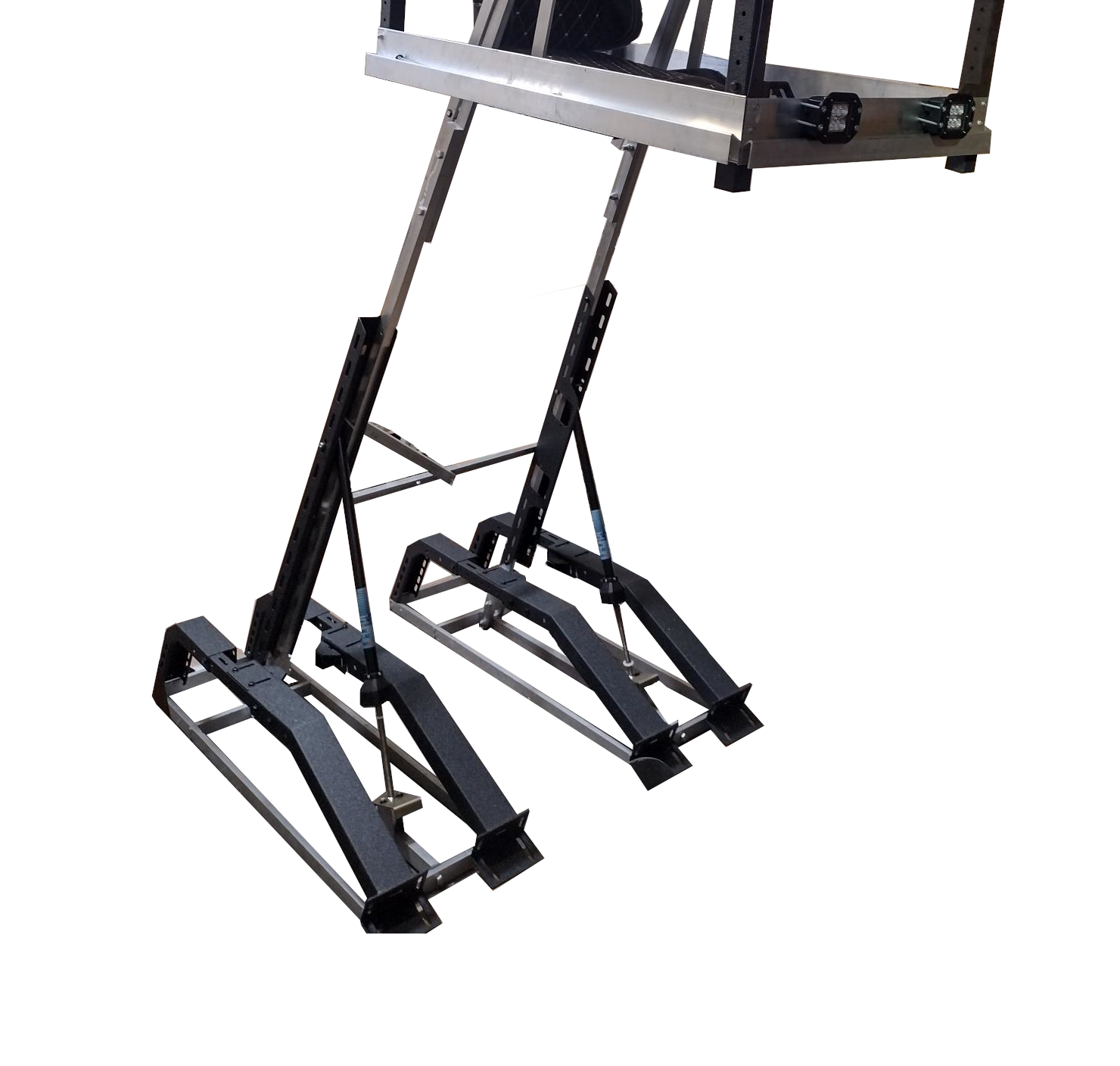

LMU-410 Industrial Standing Legs
(Mecha Mobility System Modular Unit)

The LMU-410 provides the primary mobility system for the Heavy Industrial Mecha Command Frame.

Features:

• Dual reinforced leg assemblies
• Standing load-bearing mobility structure
• Structural attachment to the command frame
• Designed for controlled movement across industrial terrain

The leg modules provide the base platform necessary for stable upright mecha operation and operator control.

OSU-200 MINOMAC G16 Reclining Gaming Seat (Black)
(Mecha Pilot Operator Seating Unit)

The OSU-200 provides a high-comfort pilot seating system designed for extended operational use.

Features:

• Adjustable reclining seat
• Ergonomic lumbar support
• Integrated mounting for cockpit installation
• Durable synthetic upholstery

The seat improves pilot endurance during long operational periods while maintaining secure positioning within the cockpit.

ORU-200 50 Caliber Racing 6007 5-Point Harness (Silver)
(Mecha Pilot Operator Restraint Unit)

The ORU-200 is the primary operator safety restraint system used in the seated cockpit.

Features:

• Five-point racing harness configuration
• High-strength webbing and metal buckles
• Secure pilot retention during motion and vibration
• Adjustable straps for operator fit

The harness ensures maximum pilot safety during mecha operation.

System Highlights

• Modular Mecha Robotics architecture
• Pilot-operated cockpit control system
• Industrial load-bearing structural frame
• Ergonomic seated operator station
• Integrated pilot safety restraint system
• Compatible with future Mecha Modular Units

Typical Applications

• Events & Gaming
• Industrial robotics experimentation
• Hazardous-environment operations
• Mining and heavy industry
• Robotics research and development
• Human-operated robotic mobility systems

Mecha Modular Units included:
Mecha Platform Core System Unit: CF-110/Heavy Industrial Mecha Command Frame
Mecha Pilot Operator Cockpit Interface Unit: OC-210/Seated Mecha Cockpit
Mecha Proprietary Interface System Unit: CIU-300/Universal Structural Connector
Mecha Mobility System Modular Unit: LMU-410/Industrial Standing Legs
Mecha Pilot Operator Seating Unit: OSU-200/MINOMAC G16 Reclining Gaming Seat(black)
Mecha Pilot Operator Restraint Unit: ORU-200/50 Caliber Racing 6007 5-Point Harness (silver)
